Plan 002 1,656 sq ft shed roof house plan, 4 bed, 3 bath
Two floors under one steep roof, with a two-car carport tucked alongside. Downstairs, living, dining and kitchen run the width of the house as one open room and open onto a patio, with a bedroom and bath behind them. Upstairs, the master suite has its own bath and a covered balcony, and two more bedrooms share a bath between them.
$949 One-time
Instant download. The complete set, 15 sheets in one PDF, is ready the moment your payment goes through, and a download link is emailed to you as well.
Secure checkout by Stripe. Because the file downloads immediately, please read the refund policy first.
01 / The Plan
Two floors, one steep roof.
Select either level to enlarge it.

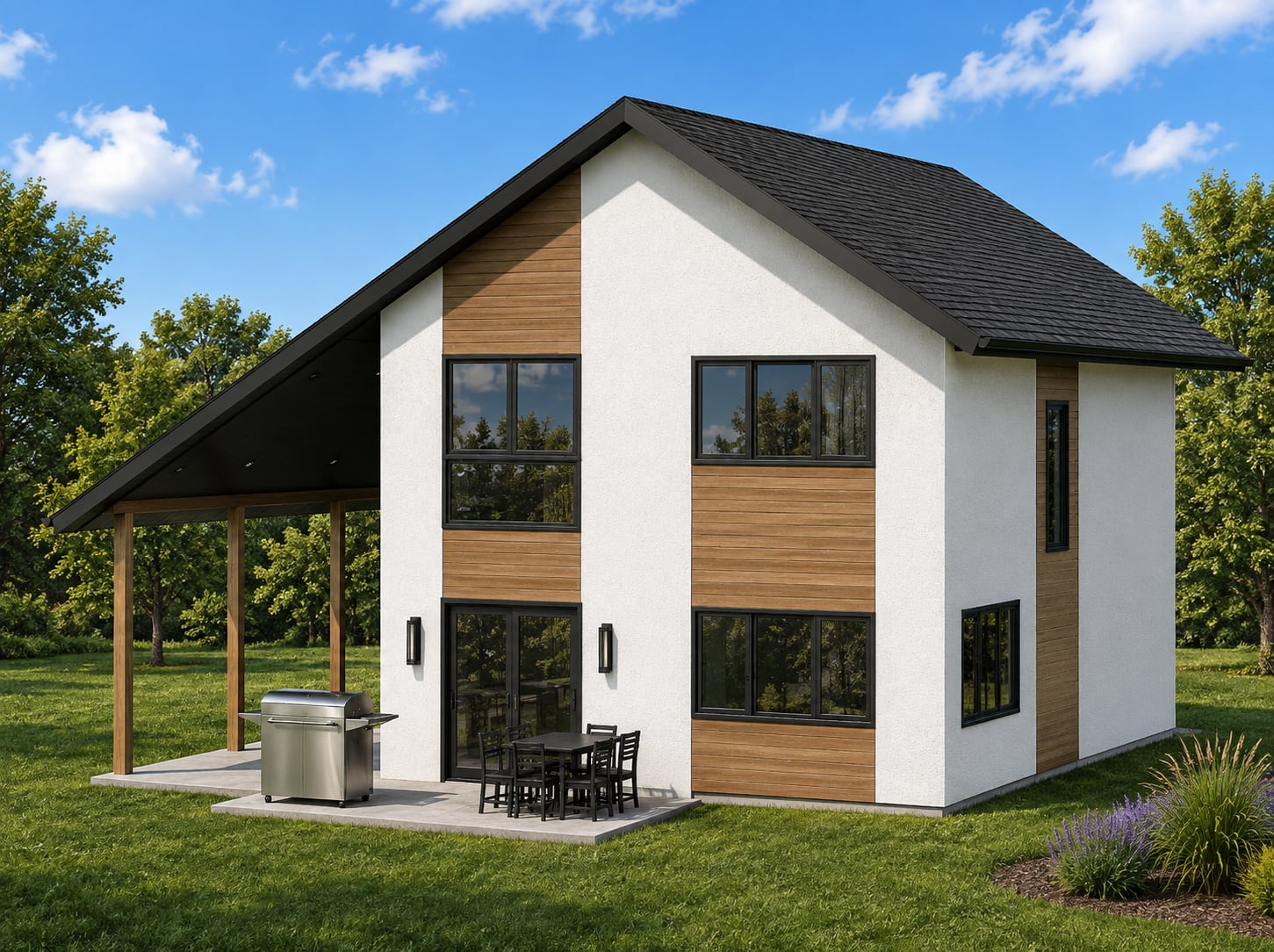

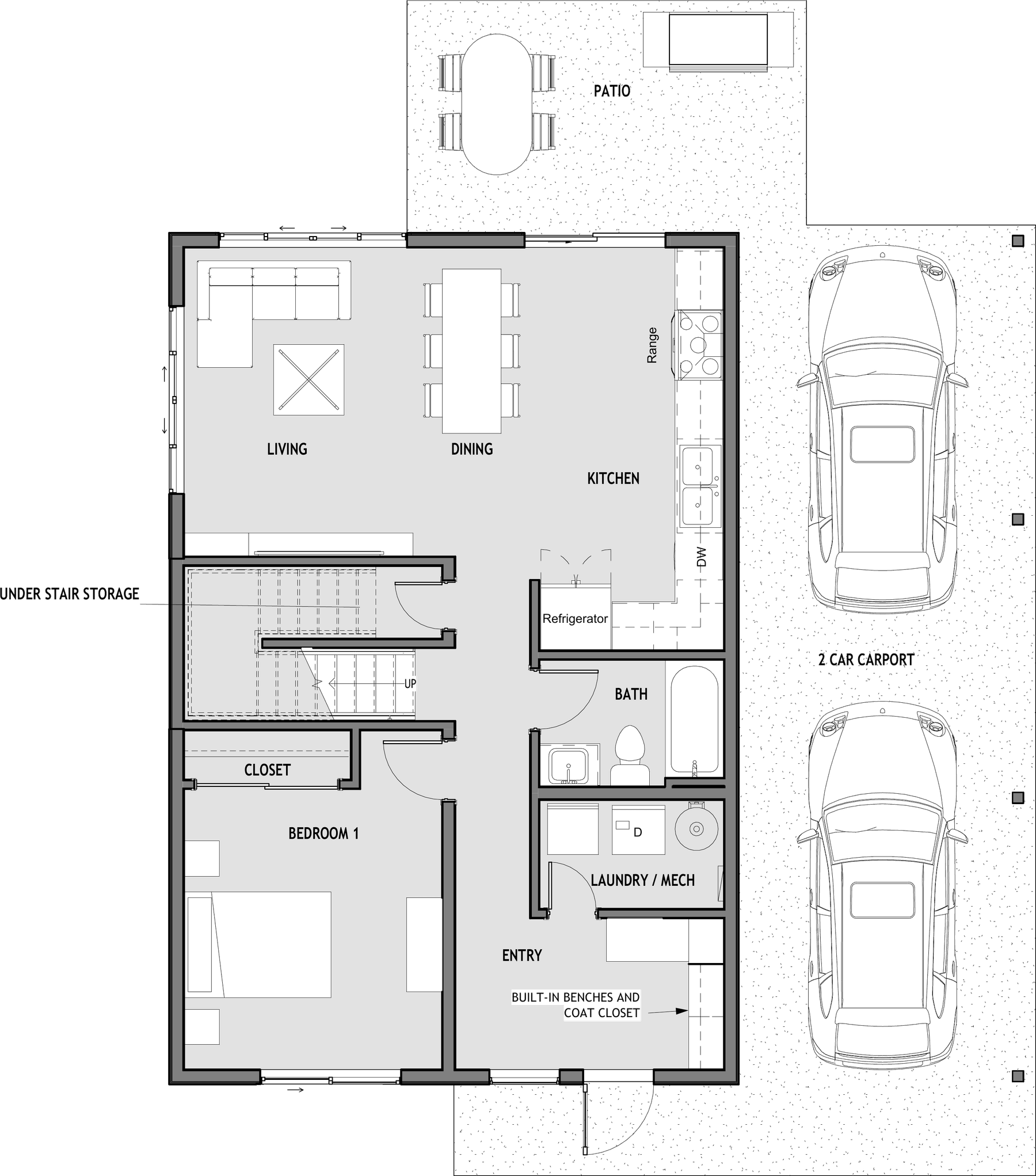

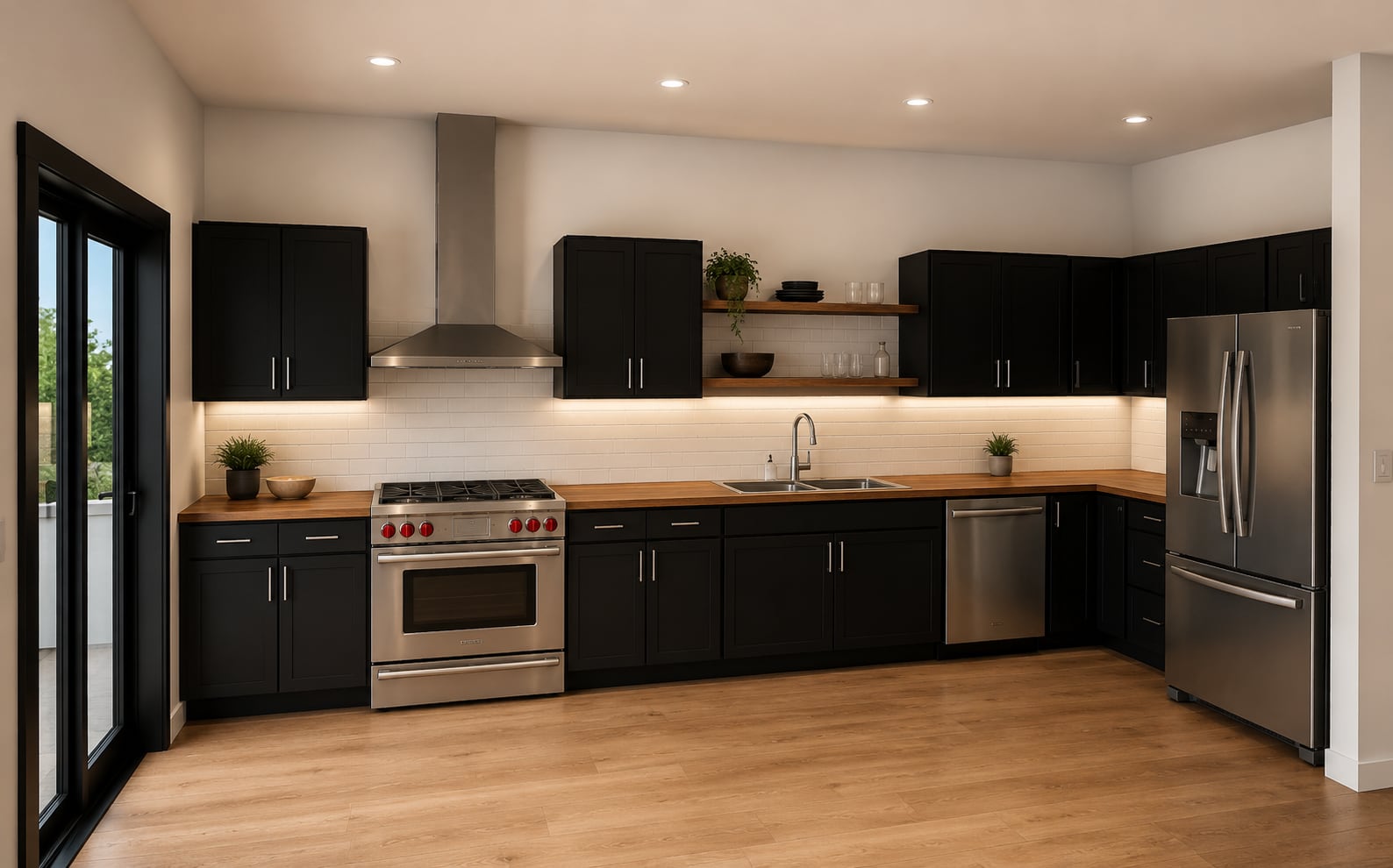

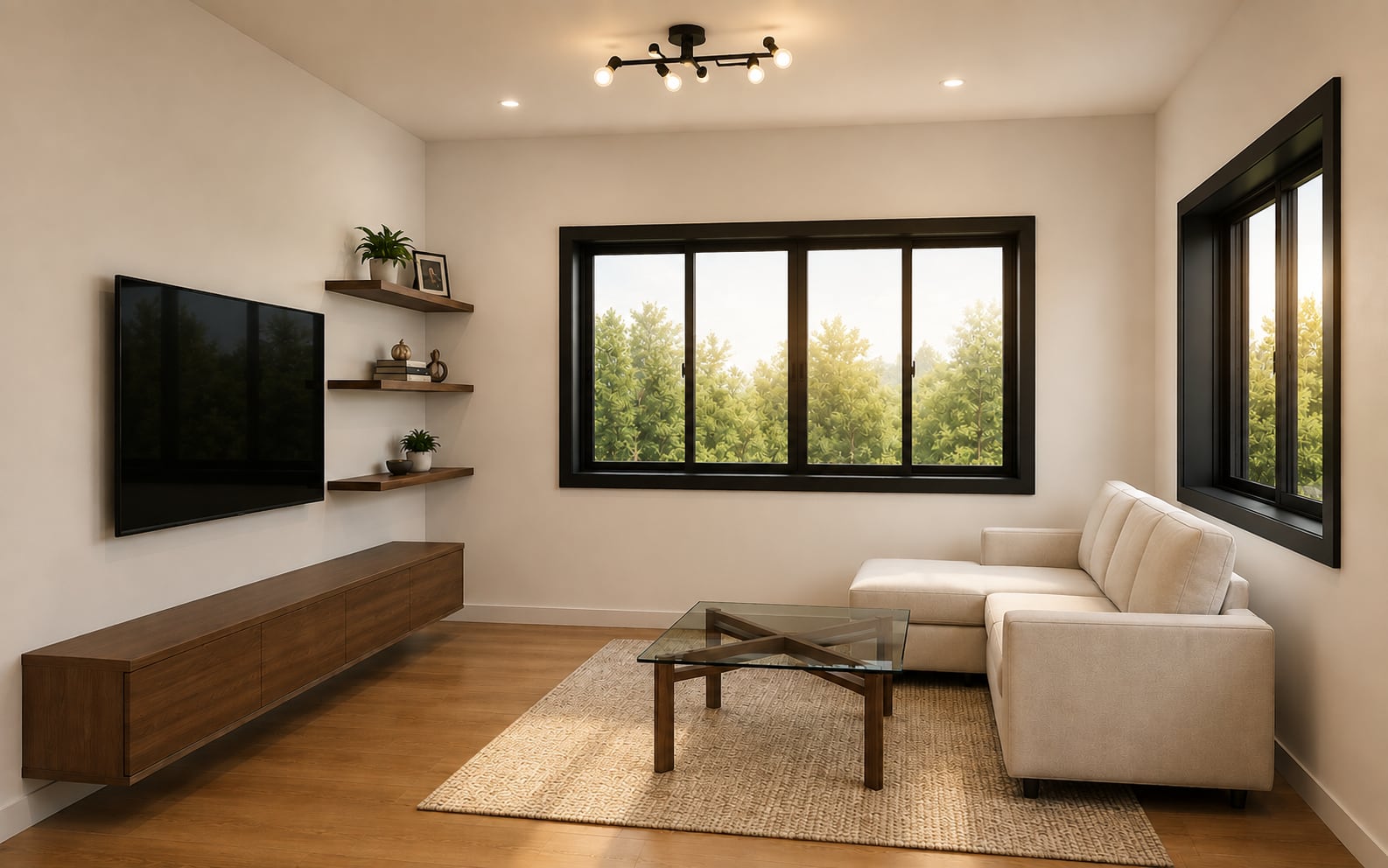

The ground floor holds one bedroom with its own bath, tucked behind the entry, plus the laundry and mechanical room. The rest of the floor is one open room: living, dining and kitchen run the full width of the house and open onto a patio. A two-car carport sits alongside, under the same roof.

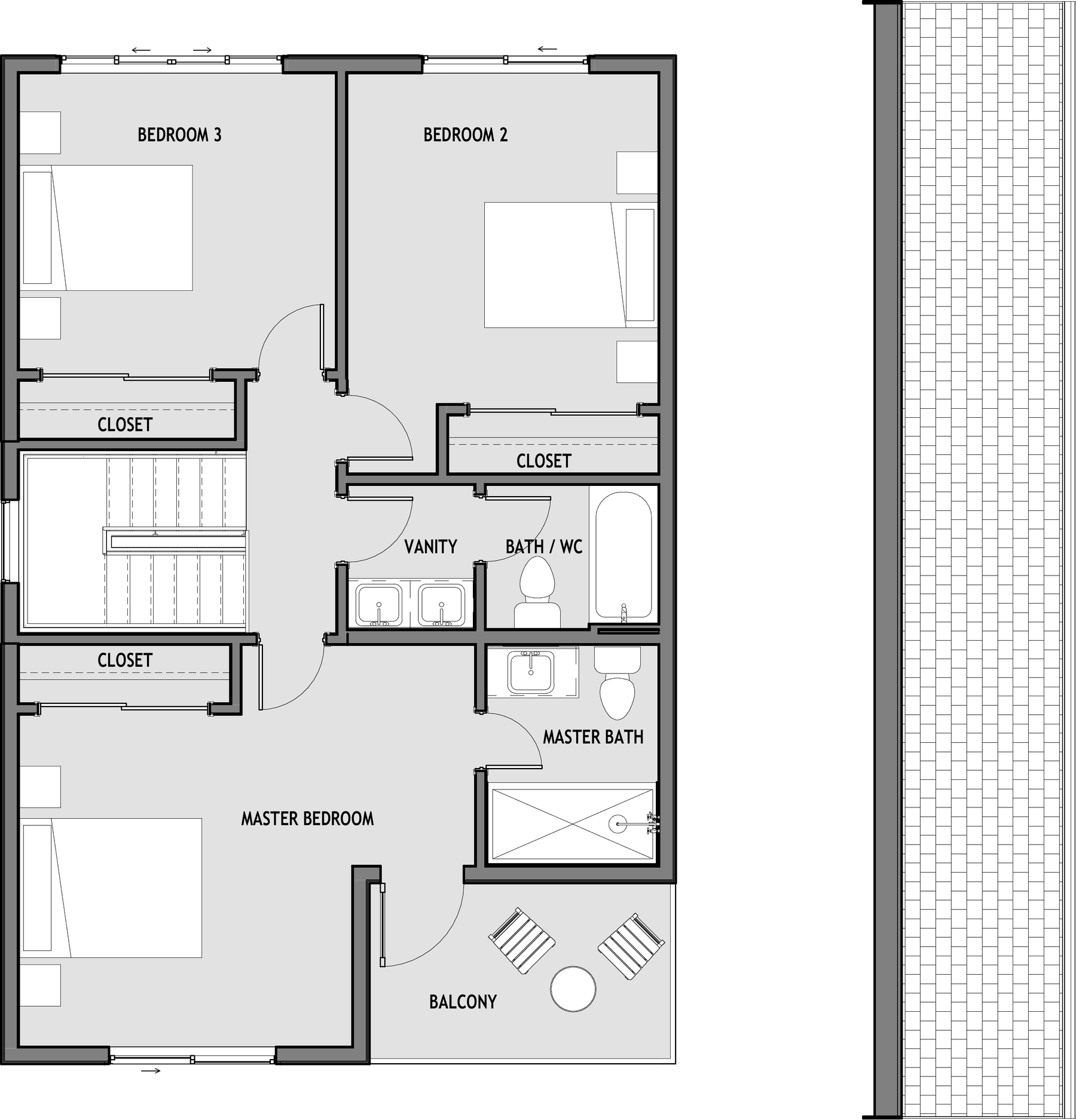

Upstairs, the master suite takes the back corner, with its own bath and a covered balcony over the entry. Two more bedrooms share a bath at the front, split by a double vanity so two people can get ready at once.
The roof carries well past the wall on slender posts, covering the carport below and the balcony above on the same line. At two stories the house tops out at twenty-seven and a half feet, still simple wood framing throughout. Putting three of the bedrooms upstairs keeps the footprint small, so four bedrooms and a two-car carport fit on a modest lot.
- Conditioned area
- 1,656 sq ft
- Two-car carport
- 432 sq ft
- Covered balcony
- 72 sq ft
- Total under roof
- 2,160 sq ft
- Building height
- 27 ft 6 in
- Stories
- 2
- Ceilings
- 9 ft on both floors
- Roof
- Single-slope shed roof, asphalt shingle
- Foundation
- Slab on grade
- Exterior walls
- 2×6 wood frame
- Construction
- Wood frame (Type V-B)
02 / The House
Front, back and inside.
Select any view to enlarge it.
03 / What You Get

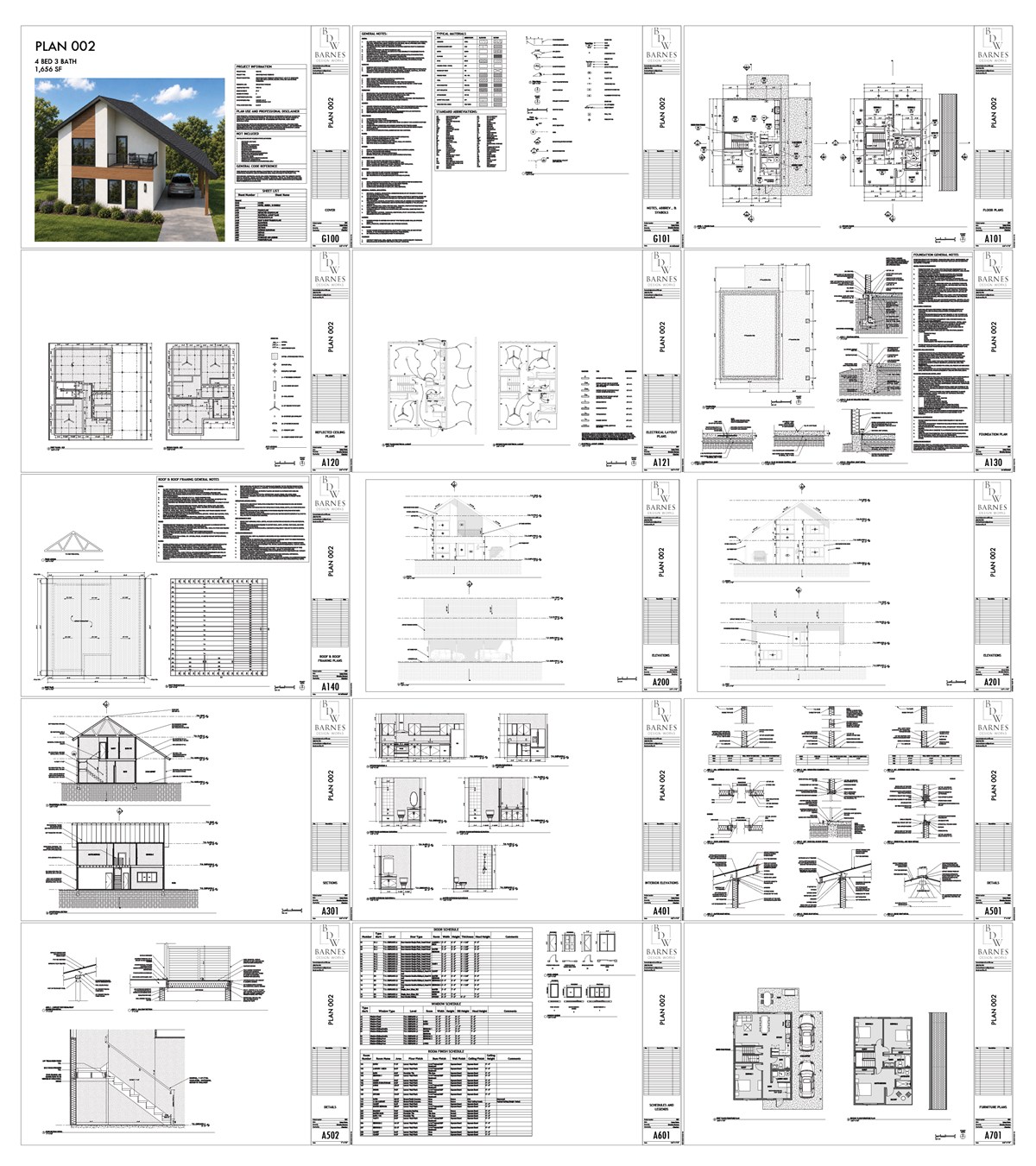

Fifteen sheets.
A complete set.
One PDF, drawn to build from. Print it as many times as the job needs.
- G100Cover and project information
- G101Notes, abbreviations and symbols
- A101Dimensioned floor plans, both levels
- A120Reflected ceiling plans
- A121Electrical layout plans
- A130Foundation plan with slab and footing details
- A140Roof plan and roof framing plan
- A200Elevations, south and east
- A201Elevations, north and west
- A301Transversal and longitudinal sections
- A401Kitchen and bathroom elevations
- A501Wall, door, window and roof details
- A502Carport, balcony and stair details
- A601Door, window and room finish schedules
- A701Furniture plans, both levels
The drawings carry dimensions, materials, framing, foundation and schedules: what a builder needs to price the job and start work.
Each plan is a complete drawing set for the design shown, but it is not drawn to a specific lot. Zoning, local code amendments and site conditions differ from place to place, so professional review, engineering or revisions may be required before you build, and permit approval is not guaranteed. See the terms.
Structural engineering: Not included. Local structural engineering or professional review may be required based on site conditions and jurisdiction.
04 / Purchase
Take the drawings home.
$949 Plan 002, complete set
One license covers one residence at one location. Building a second house from the same drawings needs a second license. See the license terms.
Prefer one level? See Plan 003, three bedrooms in 1,280 sq ft, or Plan 001, two bedrooms in 1,008 sq ft. Or compare all the small house plans.
