Plan 005 1,450 sq ft ranch house plan with garage, 3 bed, 2 bath
A one-story house with a two-car garage at one end. A gabled porch covers the front and opens into the living room, with the kitchen and dining room running together behind it, and a mud room ties the garage to the kitchen. The master suite and two more bedrooms take the other end. Sixty-six feet by thirty, on a slab, with ten-foot ceilings.
$949 One-time
Instant download. The complete set, 15 sheets in one PDF, is ready the moment your payment goes through, and a download link is emailed to you as well.
Secure checkout by Stripe. Because the file downloads immediately, please read the refund policy first.
01 / The Plan
Garage at one end, bedrooms at the other.
Sixty-six by thirty feet. Select the plan to enlarge it.
The house is one long rectangle with the open rooms in the middle. A gabled porch covers the front, with glass doors into the living room. The kitchen and dining room run together behind it, with a fireplace on the wall between the living room and the garage and a back entry off the kitchen.
The two-car garage sits at the left end with a 16-foot door in its end wall. A mud room and a mechanical and storage room sit between the garage and the kitchen.
The master suite takes the back corner at the other end, with a walk-in closet and its own bath. Two more bedrooms sit along the front, each with a closet, and share a bath off the hallway.
Ceilings are ten feet in the house. The roof is framed with pre-engineered Fink trusses under asphalt shingle, so the house stays under nineteen feet tall. It is wood framing on a slab throughout.
- Kitchen and dining
- 298 sq ft
- Living
- 202 sq ft
- Master suite
- 201 sq ft
- Other bedrooms
- 118 and 122 sq ft
- Attached garage
- 530 sq ft
- Covered porch
- 208 sq ft
- Total under roof
- 2,230 sq ft
- Footprint
- 66 × 30 ft
- Building height
- 18 ft 3 in
- Ceilings
- 10 ft
- Roof
- Asphalt shingle
- Foundation
- Slab on grade
- Exterior walls
- 2×6 wood frame
- Construction
- Wood frame (Type V-B)
02 / The House
Outside and in.
Select any view to enlarge it.
03 / What You Get

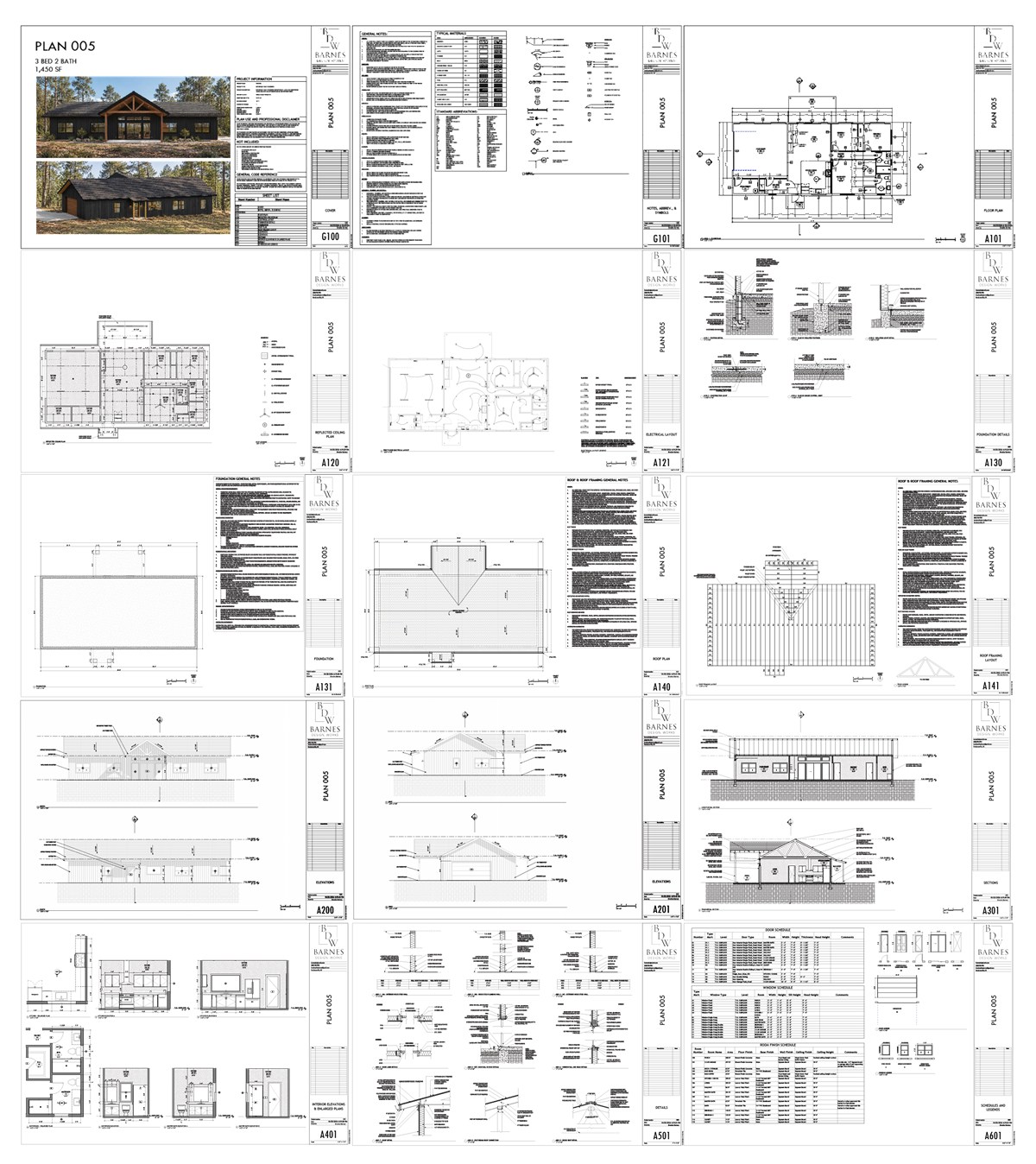

Fifteen sheets.
A complete set.
One PDF, drawn to build from. Print it as many times as the job needs.
- G100Cover and project information
- G101Notes, abbreviations and symbols
- A101Dimensioned floor plan
- A120Reflected ceiling plan
- A121Electrical layout plan
- A130Foundation details
- A131Foundation plan
- A140Roof plan
- A141Roof framing layout
- A200Elevations, north and south
- A201Elevations, east and west
- A301Transversal and longitudinal sections
- A401Kitchen and bathroom elevations, enlarged plans
- A501Wall, door, window, roof and ridge details
- A601Door, window and room finish schedules
The drawings carry dimensions, materials, framing, foundation and schedules: the information needed to understand and price the house as designed.
Each plan is a complete drawing set for the design shown, but it is not drawn to a specific lot. Zoning, local code amendments and site conditions differ from place to place, so professional review, engineering or revisions may be required before you build, and permit approval is not guaranteed. See the terms.
Structural engineering: Not included. Local structural engineering or professional review may be required based on site conditions and jurisdiction.
04 / Purchase
Take the drawings home.
$949 Plan 005, complete set
One license covers one residence at one location. Building a second house from the same drawings needs a second license. See the license terms.
Comparing? See Plan 004, three bedrooms in 1,400 sq ft, or Plan 002, four bedrooms over two stories. Or compare all the small house plans.
