Plan 003 1,280 sq ft modern farmhouse plan, 3 bed, 2 bath
A tall gable covers one vaulted room for living, kitchen and dining, with glass doors at both ends. Lower wings on either side hold the bedrooms: two sharing a bath on one side, the master suite on the other. Forty feet by thirty-two, on a slab.
$849 One-time
Instant download. The complete set, 12 sheets in one PDF, is ready the moment your payment goes through, and a download link is emailed to you as well.
Secure checkout by Stripe. Because the file downloads immediately, please read the refund policy first.
01 / The Plan
One tall room, two quiet wings.
Forty by thirty-two feet. Select the plan to enlarge it.

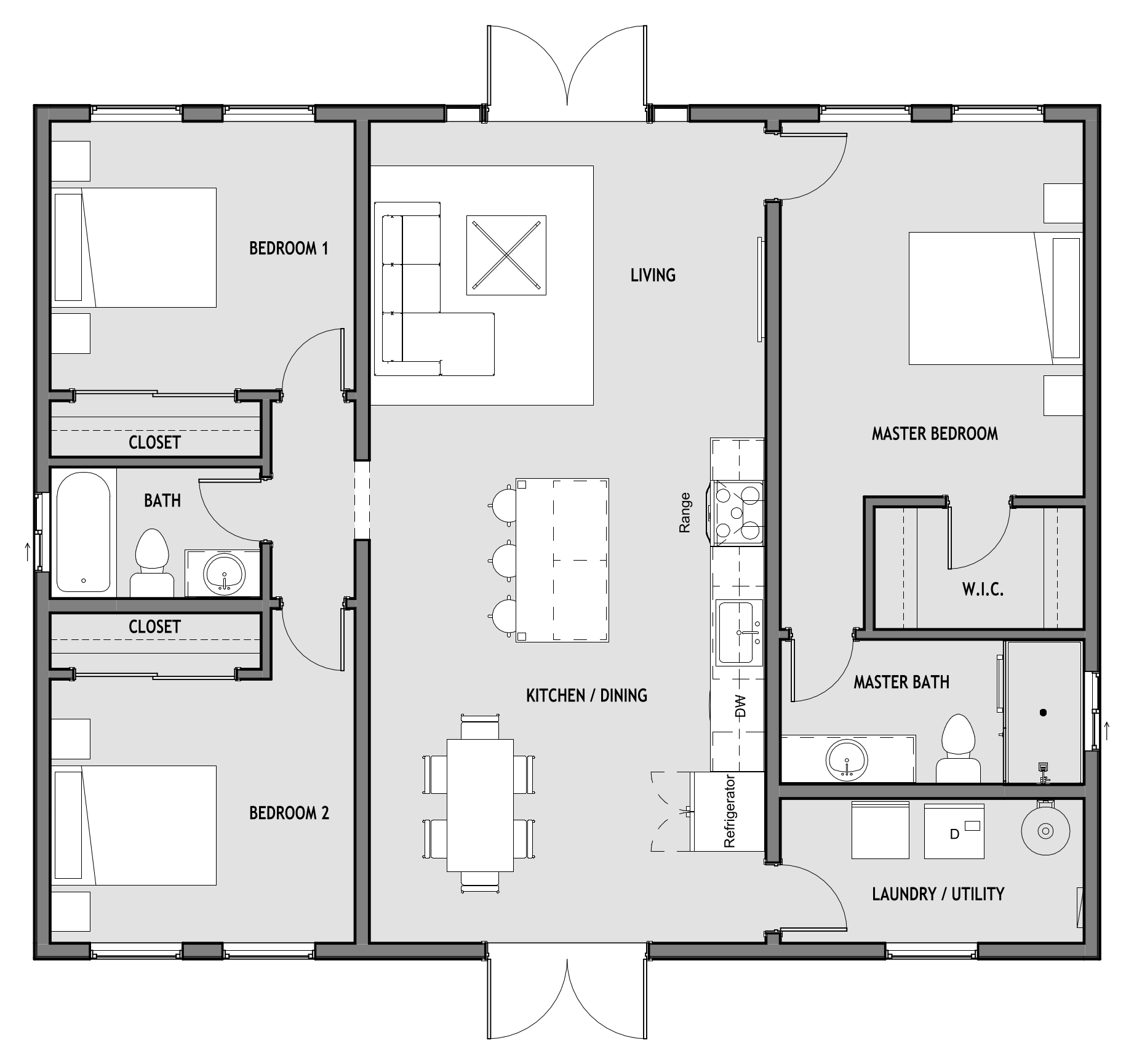

The house is three bays side by side. The middle bay is a single vaulted room under the tall gable: living by the front doors, kitchen and dining toward the back, with an island between them and a second pair of glass doors at the far end.
One wing holds two bedrooms, each with its own closet, sharing a bath between them. The other holds the master bedroom with a walk-in closet and its own bath, plus a laundry and utility room that opens straight off the kitchen. It is a split-bedroom layout, with all three bedrooms on one level and the master suite on its own side of the great room.
Outside, board and batten siding runs up to a standing seam metal roof. The wings step down under lower roofs, so the house stays under twenty feet tall, and it is simple wood framing on a slab throughout.
- Kitchen and dining
- 281 sq ft
- Living
- 182 sq ft
- Master bedroom
- 178 sq ft
- Other bedrooms
- 116 and 122 sq ft
- Footprint
- 40 × 32 ft
- Building height
- 19 ft 6 in
- Ceilings
- Vaulted in the main room and bedrooms; 8 ft in the baths
- Roof
- Standing seam metal
- Foundation
- Slab on grade
- Exterior walls
- 2×6 wood frame
- Construction
- Wood frame (Type V-B)
02 / The House
Front, side and inside.
Select any view to enlarge it.
03 / What You Get
Twelve sheets.
A complete set.

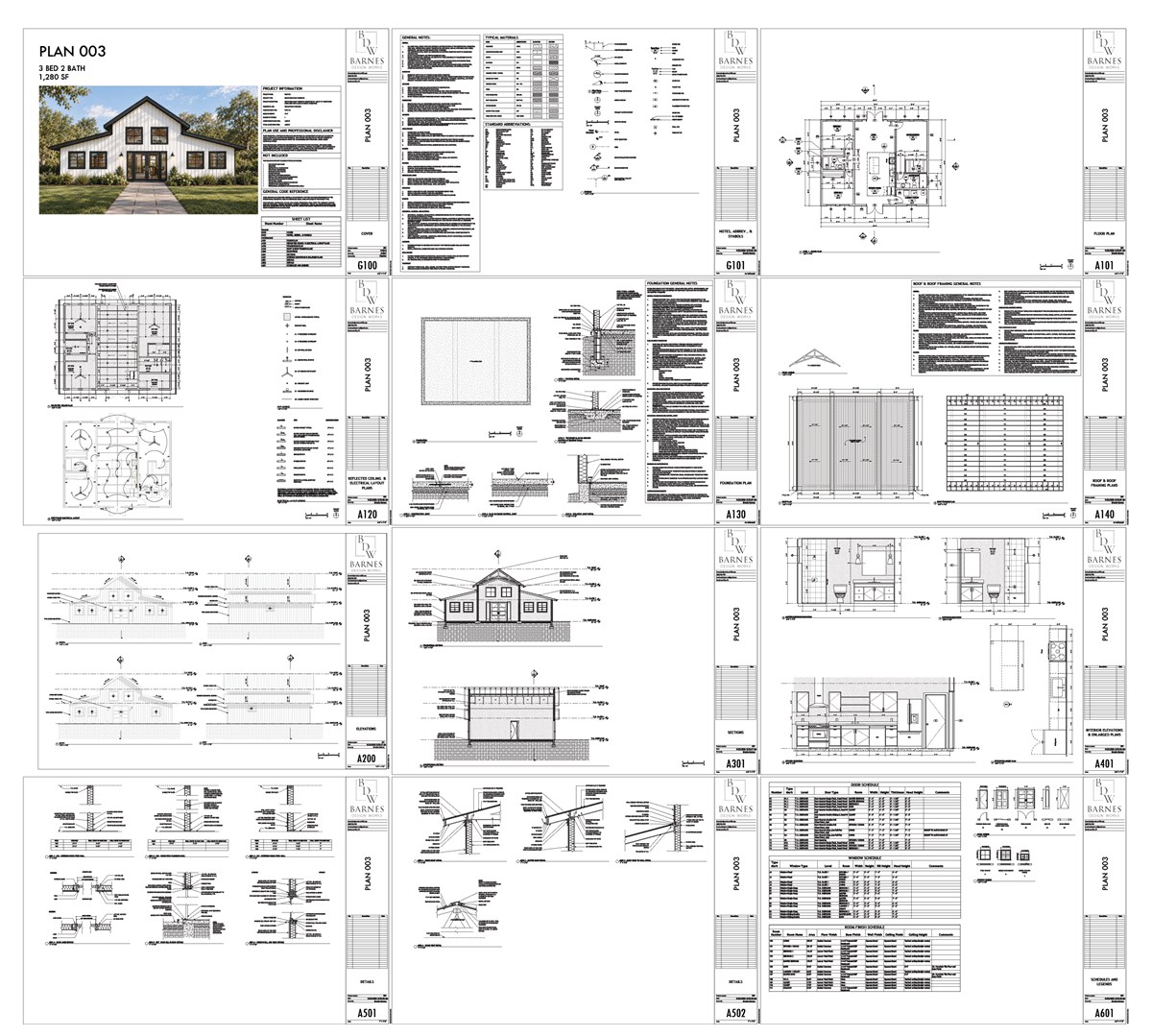

One PDF, drawn to build from. Print it as many times as the job needs.
- G100Cover and project information
- G101Notes, abbreviations and symbols
- A101Dimensioned floor plan
- A120Reflected ceiling and electrical layout plans
- A130Foundation plan with slab and footing details
- A140Roof plan and roof framing plan
- A200Elevations, all four sides
- A301Transversal and longitudinal sections
- A401Kitchen and bathroom elevations, enlarged plans
- A501Wall, door and window details
- A502Roof, eave and ridge details
- A601Door, window and room finish schedules
The drawings carry dimensions, materials, framing, foundation and schedules: what a builder needs to price the job and start work.
Each plan is a complete drawing set for the design shown, but it is not drawn to a specific lot. Zoning, local code amendments and site conditions differ from place to place, so professional review, engineering or revisions may be required before you build, and permit approval is not guaranteed. See the terms.
Structural engineering: Not included. Local structural engineering or professional review may be required based on site conditions and jurisdiction.
04 / Purchase
Take the drawings home.
$849 Plan 003, complete set
One license covers one residence at one location. Building a second house from the same drawings needs a second license. See the license terms.
Comparing? See Plan 001, two bedrooms in 1,008 sq ft, or Plan 002, four bedrooms over two stories. Or compare all the small house plans.
